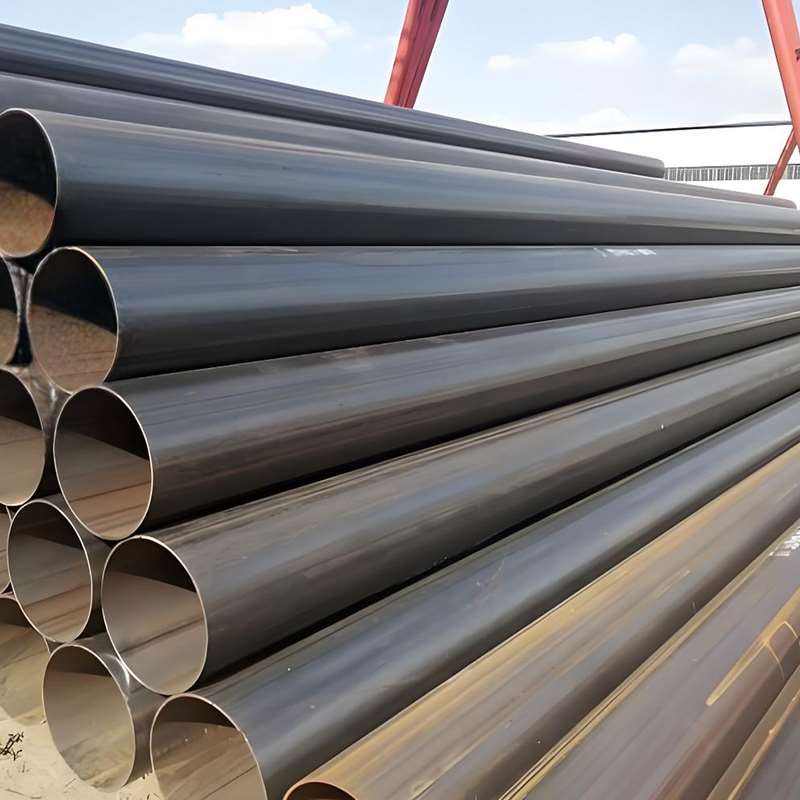

I. What Is ASTM A53 Black Welded Steel Pipe?
Introduction to ASTM A53: ASTM A53 is a standard specification developed by the American Society for Testing and Materials (ASTM). It covers seamless and welded black steel pipe and hot-dipped galvanized steel pipe in sizes ranging from NPS 1/8 to NPS 26. It is intended for general-purpose applications, including mechanical and pressure applications, as well as steam, water, gas, and air lines.
Meaning of “Black” Steel Pipe: “Black” steel pipe refers to steel pipe that has not been galvanized. Its dark-colored surface comes from the iron oxide scale formed during the high-temperature manufacturing process. It is mainly used in applications where zinc coating protection is not required or where a galvanized coating may interfere with the intended use.
Welded Pipe vs. Seamless Pipe: Welded steel pipe is manufactured by forming steel strip or steel plate into a tubular shape and then welding the seam, while seamless steel pipe is produced by piercing a solid round billet. In low- and medium-pressure systems, welded pipe is generally more cost-effective.
Difference Between Grade A and Grade B:
- Grade A: Has lower tensile strength but better plasticity and ductility, making it easier to cold bend and process.
- Grade B: Has higher yield strength and tensile strength and is a commonly used grade for industrial piping and structural applications.
II. Common Specifications of ASTM A53 Black Welded Steel Pipes
| Specification | Common Range / Options | Description |
|---|---|---|
| Manufacturing Type | Type E | Electric Resistance Welded (ERW) steel pipe is the most common type. |
| Steel Grade | Grade A / Grade B | Grade B is more commonly used in engineering projects. |
| Nominal Size | NPS 1/2″–24″ and above | The specific range depends on production capabilities and project requirements. |
| Outside Diameter | Approx. 21.3–610 mm and above | Determined according to the NPS and applicable standard dimensions. |
| Wall Thickness | SCH 10, SCH 20, SCH 40, SCH 80, etc. | The actual wall thickness should be confirmed based on the NPS and Schedule. |
| Length | 5.8 m, 6 m, 11.8 m, 12 m, etc. | Custom fixed lengths can also be provided according to project requirements. |
| Pipe Ends | Plain End, Threaded End, Beveled End | Selected according to the connection method. |
| Surface | Black / Bare | Black, ungalvanized surface. |
| Testing | Hydrostatic Test, NDT, etc. | Carried out in accordance with ASTM A53 and the applicable purchasing specifications. |
Common Specifications and Dimensions Table
| Nominal Pipe Size (NPS) | DN | Outside Diameter (mm) | SCH 40 Wall Thickness (mm) | SCH 80 Wall Thickness (mm) |
| 1/2″ | DN15 | 21.3 | 2.77 | 3.73 |
| 3/4″ | DN20 | 26.7 | 2.87 | 3.91 |
| 1″ | DN25 | 33.4 | 3.38 | 4.55 |
| 1-1/4″ | DN32 | 42.2 | 3.56 | 4.85 |
| 1-1/2″ | DN40 | 48.3 | 3.68 | 5.08 |
| 2″ | DN50 | 60.3 | 3.91 | 5.54 |
| 2-1/2″ | DN65 | 73.0 | 5.16 | 7.01 |
| 3″ | DN80 | 88.9 | 5.49 | 7.62 |
| 4″ | DN100 | 114.3 | 6.02 | 8.56 |
| 5″ | DN125 | 141.3 | 6.55 | 9.53 |
| 6″ | DN150 | 168.3 | 7.11 | 10.97 |
| 8″ | DN200 | 219.1 | 8.18 | 12.70 |
| 10″ | DN250 | 273.1 | 9.27 | 15.09 |
| 12″ | DN300 | 323.9 | 10.31 | 17.48 |
| 14″ | DN350 | 355.6 | 11.13 | 19.05 |
| 16″ | DN400 | 406.4 | 12.70 | 21.44 |
| 18″ | DN450 | 457.2 | 14.27 | 23.83 |
| 20″ | DN500 | 508.0 | 15.09 | 26.19 |
| 24″ | DN600 | 610.0 | 17.45 | 30.96 |
III. Key Properties of ASTM A53 Grade B
ASTM A53 Grade B, with its excellent balance of strength and weldability, is a widely specified grade in mechanical and industrial engineering.
1. Mechanical Properties
| Property | ASTM A53 Grade A | ASTM A53 Grade B |
|---|---|---|
| Minimum Yield Strength | 30,000 psi (205 MPa) | 35,000 psi (240 MPa) |
| Minimum Tensile Strength | 48,000 psi (330 MPa) | 60,000 psi (415 MPa) |
| Elongation | Calculated according to the specimen dimensions and the standard formula | Calculated according to the standard formula to meet the specified minimum value |
2. Chemical Composition
Carbon (C): 0.30%
Manganese (Mn): 1.20%
Phosphorus (P): 0.05%
Sulfur (S): 0.045%
Copper (Cu), Nickel (Ni), Chromium (Cr), Molybdenum (Mo), and Vanadium (V): The total content is strictly controlled to ensure good weldability.
3. Hydrostatic and Nondestructive Testing Requirements
ASTM A53 requires every steel pipe to undergo a hydrostatic test to ensure that the weld seam and pipe body are free from leakage. For Type E (ERW) welded pipe, a nondestructive electric test is also required to verify the quality of the weld seam.
IV. Applications of ASTM A53 Black Welded Steel Pipe
ASTM A53 black welded steel pipe is widely used in low- and medium-pressure applications, as well as applications requiring structural load-bearing capacity:
- Water and Wastewater Pipelines: Low-pressure water transmission pipelines and industrial circulating water systems.
- Compressed Air Systems: Main compressed air pipelines and distribution networks within factories.
- Steam and Condensate Pipelines: Saturated steam transmission in low- and medium-pressure boiler systems.
- Gas and Fuel Gas Pipelines: Natural gas and propane pipelines downstream of pressure-regulating stations in non-sour environments.
- HVAC (Heating, Ventilation, and Air Conditioning) Systems: Cooling water circulation pipes, condensate pipes, and main fire sprinkler pipelines.
- Structural and Mechanical Applications: Guardrails, piling pipes, bollards, scaffolding, and mechanical frames.
V. ASTM A53 vs. API 5L: Which One Should You Choose?
One of the most common challenges during procurement is distinguishing between ASTM A53 and API 5L. Although both standards cover welded steel pipe, they are designed for distinctly different engineering applications:
| Comparison Item | ASTM A53 | API 5L |
|---|---|---|
| Primary Applications | General industrial piping, HVAC, water, and low-pressure steam | Long-distance oil and natural gas transmission pipelines |
| Application Scope | Mainly used for plant piping or less demanding pipeline applications | Specifically designed for long-distance oil and gas transmission and slurry transportation |
| Common Grades | Grade A, Grade B | Grade B, X42, X52, X60, X65, X70, etc. |
| Project Requirements | Meets general industrial and civil construction requirements | Much more stringent, with requirements for toughness, impact testing, and PSL1/PSL2 specifications |
| Cost Considerations | More economical for standard commercial building and industrial projects | Relatively higher cost due to more stringent quality control and metallurgical requirements |
VI. Checklist for Purchasing ASTM A53 Steel Pipe
- Grade Requirements: Clearly specify Grade B or Grade A.
- Manufacturing Type: For welded pipe, clearly specify Type E (ERW). If seamless pipe is required, specify Type S.
- Dimensions: Confirm the required nominal pipe size and outside diameter.
- Wall Thickness / Schedule: Confirm the specific Schedule (such as SCH 40 or SCH 80) or the actual wall thickness in millimeters or inches.
- Length Requirements: Specify whether Single Random Length (SRL), Double Random Length (DRL), or a precise fixed length is required.

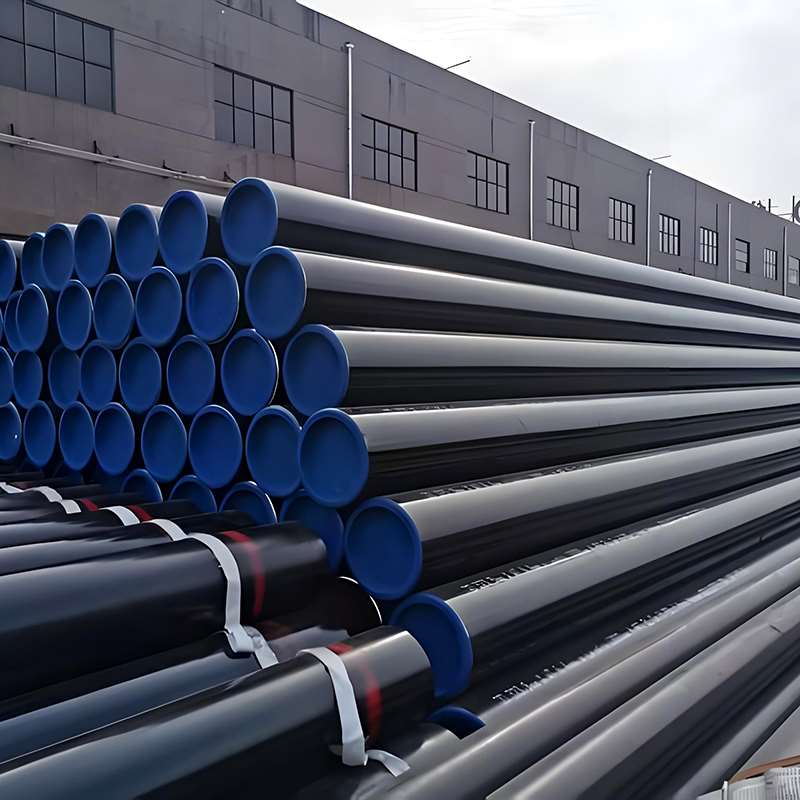

- Pipe End Type: Confirm whether Plain End (PE), Beveled End (BE), or Threaded and Coupled (T&C) ends are required.
- Testing Requirements: Confirm that the supplier will provide hydrostatic test and nondestructive testing reports in accordance with the applicable ASTM requirements.
- Material Certification: Require the supplier to provide a mill test certificate (MTC) compliant with EN 10204 3.1, including heat number, chemical composition, and mechanical properties.
- Surface Protection: Clearly specify whether light oiling, anti-rust paint, or bare pipe delivery is required to prevent corrosion during sea transportation.
- Delivery Time and Packaging: Confirm the bundling method, pipe end protectors, and moisture-proof requirements for packing and transportation.
