I. Spiral Welded Pipe ASTM A252 Overview

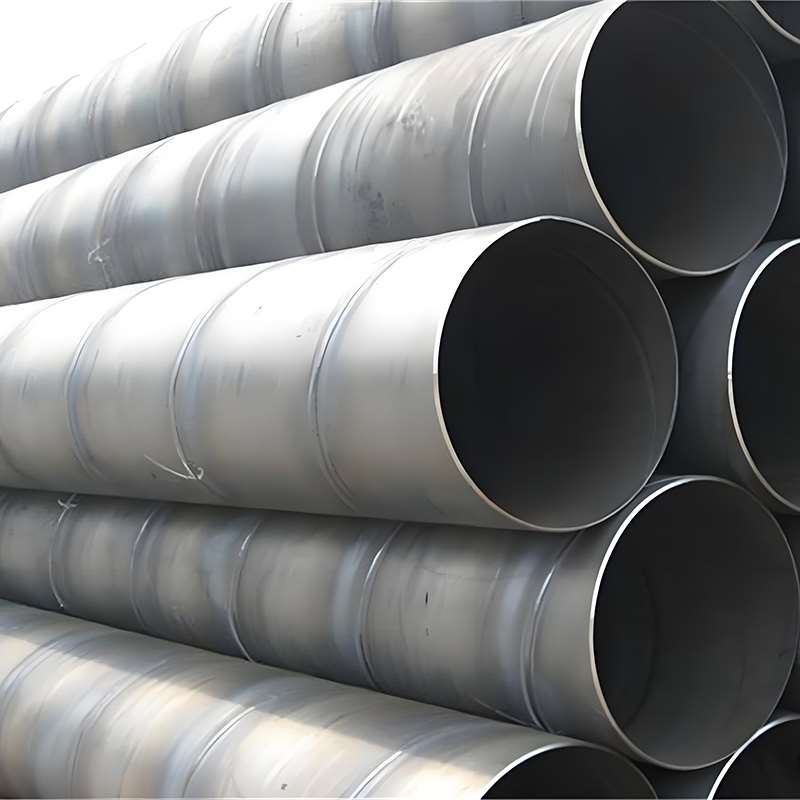

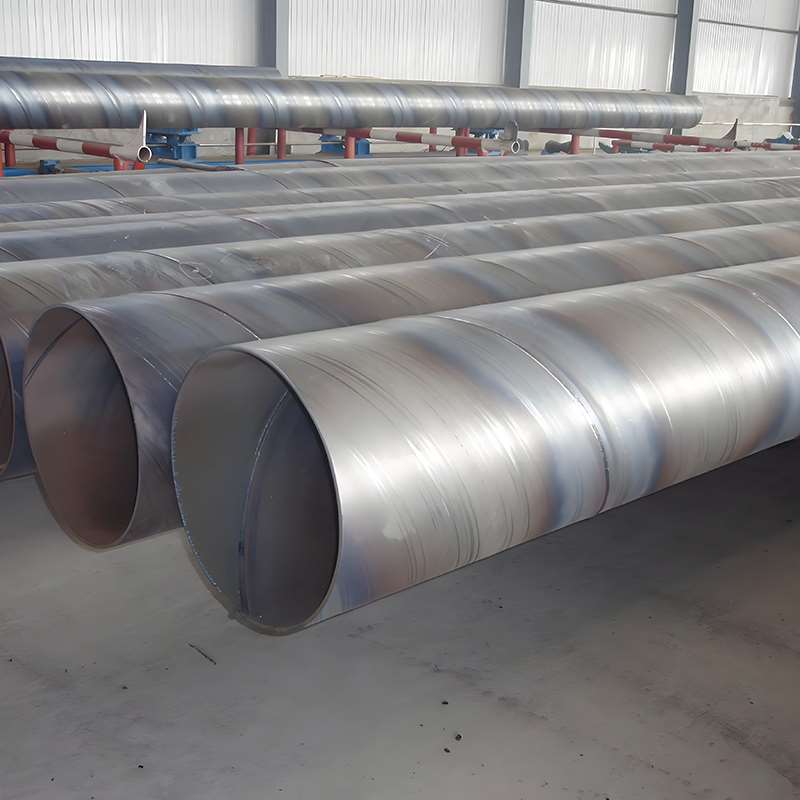

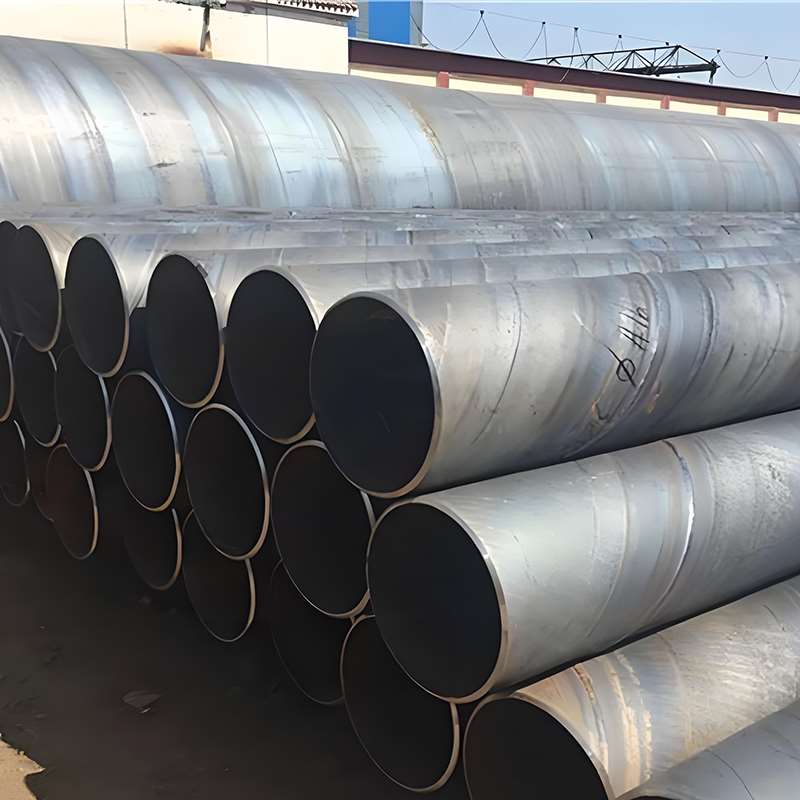

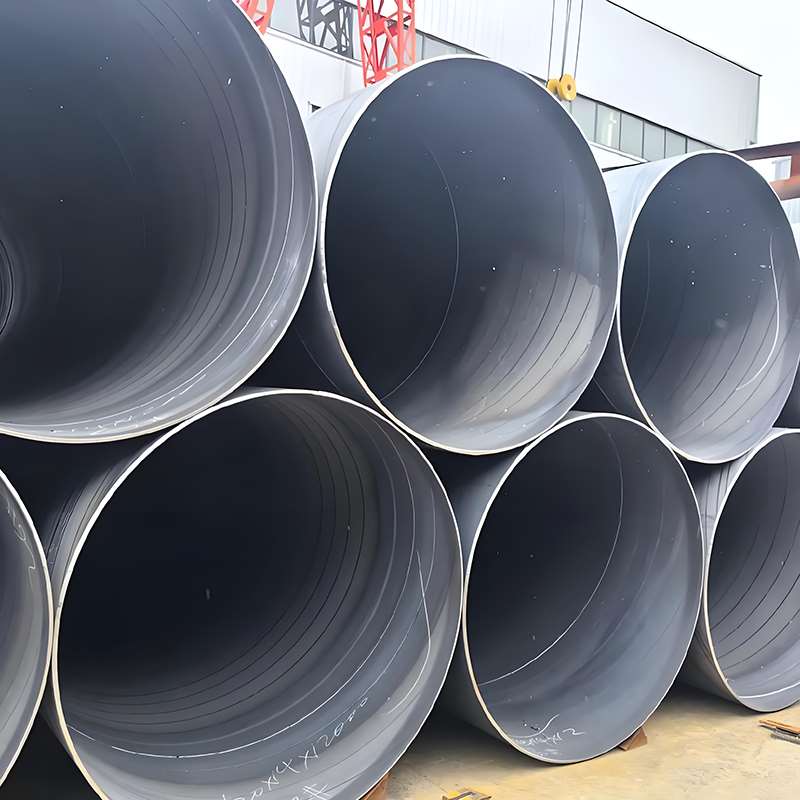

ASTM A252 spiral welded pipe is a type of steel pipe pile and structural spiral welded steel pipe produced in accordance with the American ASTM A252 standard. This product is manufactured by rolling hot-rolled steel strips into a spiral shape and then welding them into form, resulting in excellent strength, toughness, and durability.
(1) Key Features
Standard Specifications: Complies with ASTM A252 Grade 1, Grade 2, and Grade 3 requirements
Dimension Range: Outer diameter typically ranges from 219 mm to 3000 mm, with wall thicknesses from 6 mm to 25 mm (customizable)
Production Process: Spiral double-sided submerged arc welding (SSAW) ensures dense welds and structural stability
Surface Treatment: Corrosion-resistant coatings (e.g., epoxy, coal tar, 3PE) are available to enhance corrosion resistance
(2) Main Applications
Steel Pipe Piles: Port, terminal, and bridge foundations
Structural Support: Support for large-scale buildings and foundation engineering
Conveyance Pipelines: Suitable for the conveyance of water, slurry, and other low-pressure fluids
II. Spiral Welded Pipe ASTM A252 Comparison Table with Other Standards
| Item | ASTM A252 | API 5L | EN 10219 | GB/T 9711 |
|---|---|---|---|---|
| Main Application | Steel piles, structural support, low-pressure transmission | Long-distance oil & gas pipelines | Building & mechanical structures | Oil & gas transmission pipelines |
| Grade Classification | Grade 1 / Grade 2 / Grade 3 | PSL1 / PSL2 (GR.B – X80) | S235JRH, S275JRH, S355J2H, etc. | L245 – L555 (PSL1 / PSL2) |
| Manufacturing Process | SSAW (Spiral Submerged-Arc Welded) | SAW / LSAW / SMLS | SAW / LSAW | SAW / LSAW |
| Outer Diameter Range | 219 – 3000 mm | 219 – 2540 mm | 21.3 – 2500 mm | 219 – 3000 mm |
| Wall Thickness Range | 6 – 25 mm | 3.2 – 25.4 mm | 2 – 25 mm | 6 – 25 mm |
| Length | 6 – 50 m (customizable) | 5 – 18 m (or customized) | 6 – 18 m (or customized) | 6 – 18 m (or customized) |
| Yield Strength | G1 ≥ 205 MPa G2 ≥ 240 MPa G3 ≥ 310 MPa |
245 – 555 MPa (grade-dependent) | 235 – 355 MPa | 245 – 555 MPa |
| Tensile Strength | G1 ≥ 310 MPa G2 ≥ 415 MPa G3 ≥ 455 MPa |
415 – 760 MPa | 360 – 510 MPa | 415 – 760 MPa |
| Elongation | ≥ 20 % (longitudinal) | ≥ 18 % (grade-dependent) | ≥ 20 % | ≥ 18 % (grade-dependent) |
| Surface Treatment | Black, anti-corrosion coating | Black, anti-corrosion coating | Black, galvanized | Black, anti-corrosion coating |
| Inspection Requirements | UT or RT (optional) | UT, RT (strictly required) | UT or other NDT | UT, RT |
| Primary Markets | Infrastructure, ports, wharfs | Oil & gas industry | Construction & machinery sectors | Oil & gas and industrial pipelines |
III. Spiral welded pipe ASTM A252 material grade
| Material Grade | Minimum Yield Strength | Minimum Tensile Strength | Main Applications & Features |
|---|---|---|---|
| Grade 1 | 30 ksi (≈ 207 MPa) | 50 ksi (≈ 345 MPa) | Lower strength requirements; suitable for light-duty piles or temporary works. |
| Grade 2 | 35 ksi (≈ 241 MPa) | 60 ksi (≈ 414 MPa) | Most commonly used in projects; balanced strength and cost-effectiveness for general pile foundations. |
| Grade 3 | 45 ksi (≈ 310 MPa) | 66 ksi (≈ 455 MPa) | High-strength grade for heavy loads, deep piles, and large structural foundations. |
IV. What engineering fields are ASTM A252 spiral welded pipes mainly used in?
ASTM A252 spiral welded pipes are mainly used as steel pipe piles, emphasizing bearing capacity and construction applicability. Therefore, their application is concentrated in structural foundations and pile foundation engineering, rather than transporting media.
Main application engineering fields：
| Engineering Field | Specific Application | Characteristics & Advantages |
|---|---|---|
| Bridge Engineering | Pier piles, pile caps, bearing supports | High strength, impact resistance, suitable for underwater construction |
| Port & Wharf Construction | Piles, revetment structures, mooring dolphins | Corrosion resistance, collision protection, drivable into complex strata |
| Marine Engineering | Offshore wind foundations, platform supports | Withstands marine corrosion and wave impact |
| Municipal & Infrastructure Works | Metro retaining piles, tunnel diaphragm walls | Stable load-bearing capacity, rapid construction |
| High-Rise Buildings | Deep excavation support piles, skyscraper foundation piles | High load capacity, suitable for deep piling |
| Flood Control & Hydraulic Engineering | Revetments, cofferdams, retaining piles | Resistant to water scour, excellent anti-seepage performance |
| Industrial Facility Construction | Foundation piles for heavy equipment | High rigidity and long-term durability |
| Road & Railway Engineering | Bridge support piles, subgrade reinforcement piles | Superior seismic performance, strong construction adaptability |
Description:
ASTM A252 can produce two types of steel pipe piles: straight seam welded (LSAW) and spiral welded (SSAW). Spiral welded piles are more suitable for large-diameter, long-length piles.
In seaports, rivers, and marine engineering, external corrosion protection (3PE, epoxy coating, etc.) is often used to improve durability.
Suitable for various pile foundation construction methods, including driven piles, drilled cast-in-place piles, and driven piles.
V. Factors Affecting the Price of ASTM A252 Spiral Welded Steel Pipes
Steel Material Costs: Fluctuations in raw material prices directly impact pipe prices, accounting for the largest proportion of total costs.
Material Grade: Different grades (Grade 1/2/3) have varying mechanical property requirements, with higher grades commanding higher prices.
Specifications and Dimensions: Larger diameters, wall thicknesses, and lengths result in higher material consumption and processing difficulties, leading to increased prices.
Production Process: Welding methods and testing requirements (ultrasonic, radiographic, hydrostatic testing) increase costs.
Corrosion Protection: Different corrosion protection methods (3PE, epoxy, FBE, etc.) result in significant cost differences.
Order Quantity: Bulk orders reduce unit prices, while custom orders in small quantities are more expensive.
Transportation and Delivery Time: Transportation distance, method, and urgent delivery requirements affect the final price.
Market supply and demand: Prices rise during peak construction seasons or steel shortages and may decrease during off-peak periods.
These factors collectively determine the final quotation for ASTM A252 spiral welded steel pipes.
VI. ASTM A252 Spiral Welded Pipe Testing Standard
Dimension Accuracy: Inspect outer diameter, wall thickness, length, roundness, and straightness; all must be within the permissible deviations specified in the standard.
Surface Quality: The pipe body and weld surface must not have defects such as cracks, delamination, inclusions, or porosity.
Mechanical Properties: Conduct tensile tests to measure yield strength, tensile strength, and elongation, ensuring compliance with the corresponding grade requirements.
Weld Inspection: Ultrasonic (UT) or radiographic (RT) testing is conducted to inspect the internal quality of the weld, ensuring no defects are present.
Hydrostatic Test: The pressure resistance and sealing integrity are tested, with no leakage permitted.
Chemical Composition: When necessary, the content of elements such as C, Mn, P, and S is tested to ensure compliance with specifications.
Factory Report: A Material Test Certificate (MTC) and test results are provided.
