I. Definition of Spiral Submerged Arc Welded Steel Pipe API 5L GR.B
(1) Definition:

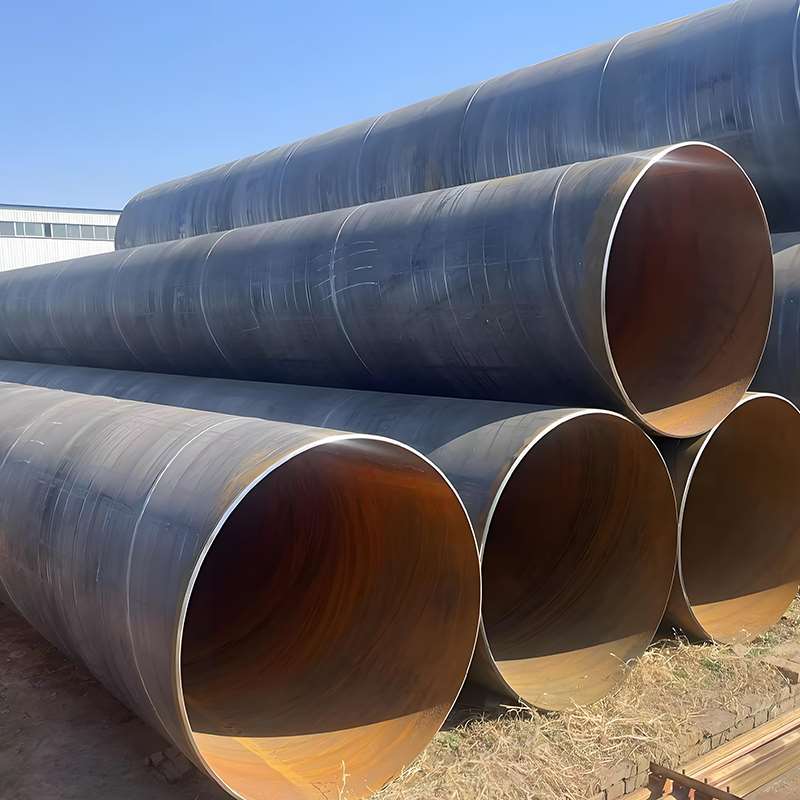

Spiral Submerged Arc Welded Steel Pipe (SSAW) is a type of steel pipe manufactured by rolling steel strips or plates into a tube along a spiral direction, followed by welding using the Submerged Arc Welding (SAW) process.
API 5L GR.B is one of the steel pipe grades specified in the API 5L standard of the American Petroleum Institute (API). GR.B (Grade B) is a low-pressure carbon steel suitable for conveying fluids such as petroleum, natural gas, and water, featuring excellent weldability and mechanical properties.
(2) Features:
Spiral weld seam: Forms a spiral pattern along the pipe body, ensuring stable weld quality and enabling the production of large-diameter steel pipes.
Material grade: GR.B has a yield strength of ≥ 241 MPa, making it suitable for medium- and low-pressure transmission pipelines.
Wide application: Used in onshore and offshore oil and natural gas pipelines, urban gas pipelines, and industrial water supply lines.
Customizable specifications: Outer diameter, wall thickness, and length can be produced according to project requirements.
(3) In summary:
Spiral submerged arc welded steel pipes API 5L GR.B are spiral welded steel pipes compliant with the API 5L standard, designed for medium- and low-pressure fluid transportation. They combine high welding efficiency, large-diameter manufacturability, and excellent mechanical properties.
II. Chemical Composition of Spiral Submerged Arc Welded Steel Pipe API 5L GR.B
Carbon (C): ≤ 0.25%, low-carbon steel, easy to weld
Manganese (Mn): 0.27–1.06%, improves strength and toughness
Silicon (Si): 0.10–0.35%, enhances elasticity and strength
Sulfur (S): ≤ 0.035%, low impurity content, prevents brittleness
Phosphorus (P): ≤ 0.035%, low impurity content, prevents brittleness
Nickel (Ni): ≤ 0.30%, improves toughness and corrosion resistance
Chromium (Cr): ≤ 0.30%, improves corrosion resistance and hardness
Molybdenum (Mo): ≤ 0.08%, enhances corrosion resistance and high-temperature strength
III. Main Applications and Value of Spiral Submerged Arc Welded Steel Pipes API 5L GR.B
(1) Main Applications:
Spiral submerged arc welded steel pipes API 5L GR.B are primarily used in oil and natural gas transmission pipelines, urban gas networks, industrial water supply systems, chemical pipelines, as well as underground water supply, fire protection, and building structural pipelines in various engineering projects.
(2) Main Value:
This pipe material features high-quality welding, reliable strength, customizable specifications, high construction efficiency, and can extend service life through corrosion-resistant coatings. It combines cost-effectiveness and versatility, meeting diverse requirements for medium-to-low-pressure fluid transportation.
IV. Cost Analysis of Spiral Submerged Arc Welded Steel Pipe API 5L GR.B
| Cost Factor | Description | Impact on Cost |
|---|---|---|
| Raw Materials | Steel coil prices and alloy elements such as carbon, manganese, and silicon | Directly determines the base unit price of the pipe |
| Manufacturing | Spiral submerged arc welding (SAW), cutting, and end finishing | Larger diameters or custom pipes carry higher costs |
| Anti-corrosion Coating | Processes such as FBE, PE, or hot-dip galvanizing | Different coatings and thicknesses significantly affect price |
| Transport & Logistics | Pipe weight, length, and large-diameter transport requirements | Long-distance or special transport adds extra expense |
| Procurement & Supply | Volume purchasing, supplier qualification, and delivery schedules | High-quality suppliers may cost more but offer greater reliability |
| Overall Cost-Effectiveness | Sum of material + manufacturing + coating + transport + certification | Opt for pipes with the best balance of price and low maintenance cost |
V. Spiral Submerged Arc Welded Steel Pipe API 5L GR.B Selection Guide
(1) Determine the operating environment
Conveyed medium: crude oil, natural gas, water, steam, or chemical liquids
Pressure rating: medium-low pressure pipelines (GR.B yield strength ≥ 241 MPa)
Temperature Requirements: Ambient, low-temperature, or special high-temperature environments
(2) Determine Specifications and Dimensions
Outer Diameter (OD): Select based on pipeline flow rate and design requirements
Wall Thickness (WT): Select based on design pressure, length, and construction conditions
Length (L): Standard 6–12 meters, customizable
(3) Select corrosion protection and coating
FBE coating: Suitable for oil and natural gas transportation, wear-resistant and corrosion-resistant
PE coating: Suitable for buried pipelines and water supply systems
Hot-dip galvanizing: Suitable for industrial water and building pipelines
(4) Consider welding and construction requirements
Welding process: Spiral submerged arc welding (SSAW), stable and reliable welds
Construction convenience: Pipe material weight, transportation, and installation conditions
(5) Quality and certification requirements
Steel grade certificate: API 5L GR.B
Factory test report: Chemical composition, mechanical properties, weld inspection
Third-party testing: Selected according to project requirements
(6) Customization requirements
Customized pipe length or wall thickness
Special corrosion protection or coating treatment
End processing (chamfering, flanges, etc.)
VI. Why Choose Our Manufacturer
Our company is equipped with advanced spiral submerged arc welded steel pipe production facilities and proven manufacturing processes, ensuring the precision and consistency of our pipe products. The company has obtained ISO 9001 Quality Management System Certification, ISO 14001 Environmental Management System Certification, and ISO 45001 Occupational Health and Safety Management Certification. We strictly enforce quality and safety controls throughout the entire production process, from raw material procurement to finished product shipment. Every production step undergoes rigorous testing, and we provide API 5L certification and third-party testing reports to ensure reliable product performance.
Additionally, we offer flexible customization services, including pipe length, wall thickness, corrosion-resistant coatings, and end processing, to meet the specific requirements of various engineering projects. Choosing us means choosing high-quality, traceable, environmentally friendly, and safe and reliable pipeline solutions.
