I. API 5L X52 Carbon Steel Welded Pipe Overview
API 5L X52 carbon steel welded pipe is a line pipe manufactured according to the API 5L standard and is used for transporting oil, natural gas, water, and other fluids.
“X52” designates a minimum yield strength of 52,000 psi (approximately 360 MPa), a medium-to-high strength grade with excellent pressure resistance and weldability.
API 5L X52 welded pipe is typically manufactured using ERW (electric resistance welding), LSAW (longitudinal submerged arc welding), or SSAW (spiral submerged arc welding) processes and is suitable for medium-to-high pressure and long-distance transportation.
Comparison with other common grades is as follows:
| Grade | Yield Strength (MPa) | Characteristics & Application Range |
|---|---|---|
| X42 | ≥290 | Suitable for low-pressure fluid transmission, such as water and low-pressure natural gas pipelines. |
| X52 | ≥360 | Moderate strength with good weldability; commonly used for medium-pressure transmission pipelines. |
| X56 | ≥390 | Higher strength; suitable for medium-to-high-pressure transmission and pipelines in complex terrain. |
| X60 | ≥415 | Used for high-pressure or deeply buried pipeline projects; typically higher cost. |
II. API 5L X52 PSL1 and PSL2 Welded Pipe Comparison
| Item | API 5L X52 PSL1 | API 5L X52 PSL2 | Comparison Description |
|---|---|---|---|
| Application Scope | General oil, gas, and water transmission pipelines | High-pressure, long-distance, or critical oil and gas pipelines | PSL2 has stricter requirements and is suitable for high-risk environments. |
| Yield Strength | ≥360 MPa | 360–530 MPa | PSL2 sets an upper limit, ensuring more stable performance. |
| Tensile Strength | 460–760 MPa | 460–760 MPa | Basically the same, but PSL2 requires stricter testing. |
| Elongation | ≥21% | ≥23% | PSL2 requires higher ductility. |
| Carbon (C) | ≤0.26% | ≤0.24% | Lower carbon content in PSL2 improves weldability. |
| Manganese (Mn) | ≤1.40% | ≤1.40% (tighter control) | PSL2 ensures more precise composition control. |
| Phosphorus (P) | ≤0.030% | ≤0.025% | PSL2 has stricter impurity control. |
| Sulfur (S) | ≤0.030% | ≤0.015% | Lower sulfur improves toughness and crack resistance. |
| Nb + V + Ti (Alloy Elements Total) | Not specified | ≤0.15% | PSL2 limits microalloying additions. |
| Carbon Equivalent (CE) | Not specified | ≤0.43 | PSL2 controls hardenability for better weld performance. |
| Impact Test | Not mandatory | Mandatory (-20°C, ≥27J) | PSL2 ensures low-temperature toughness. |
| Nondestructive Testing | Optional | Mandatory (100% weld inspection) | PSL2 enforces stricter testing standards. |
| Hydrostatic Test | Required | Required | Both PSL1 and PSL2 require hydrostatic testing. |
| Cost & Usage | Lower cost, for general transmission pipelines | Slightly higher cost, for critical pipeline projects | PSL2 offers higher safety and reliability. |
III. API 5L X52 ERW / LSAW / SSAW Welded Pipe Process Comparison
| Process Type | Manufacturing Description | Applicable Diameter | Wall Thickness Range | Features & Advantages | Typical Applications |
|---|---|---|---|---|---|
| ERW (Electric Resistance Welded) | Steel strip is cold-formed into a round shape and welded by applying high-frequency current and pressure at the seam. | Small diameter (≤ 24") | Thin to medium wall | Uniform weld seam, smooth surface, high dimensional accuracy, and high production efficiency. | Urban water supply networks, natural gas distribution pipelines, and building structures. |
| LSAW (Longitudinal Submerged Arc Welded) | Steel plate is rolled into a pipe blank and welded longitudinally using submerged arc welding. | Large diameter (16"–60") | Medium to thick wall | High strength, straight weld seam, excellent mechanical properties, and easy for nondestructive testing. | Oil and gas trunk pipelines, and high-pressure long-distance transmission systems. |

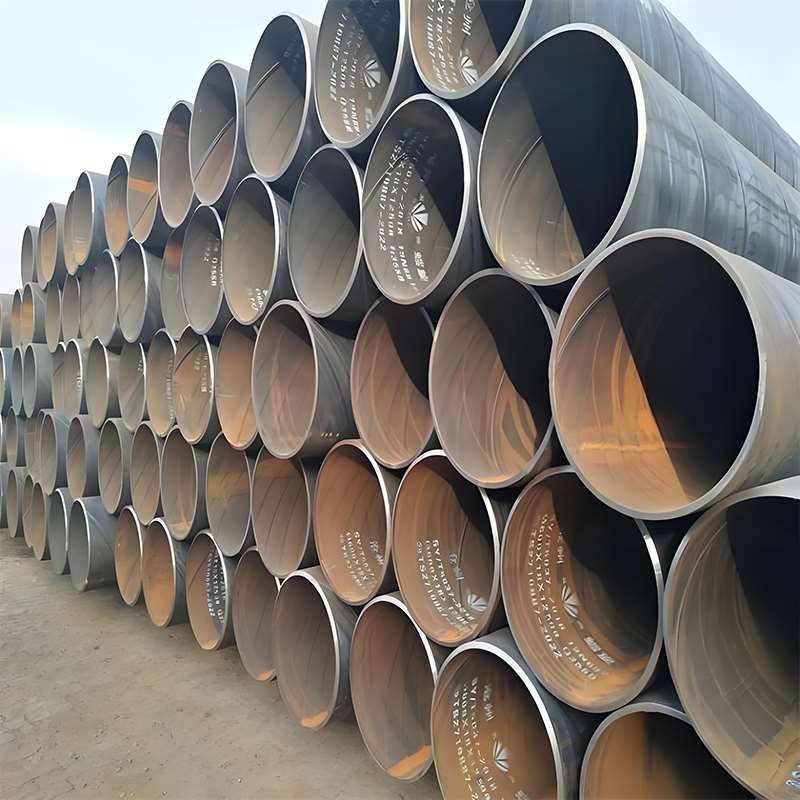

| SSAW (Spiral Submerged Arc Welded) | Steel strip is formed into a spiral shape and welded on both inner and outer sides using submerged arc welding. | Large diameter (8"–120") | Medium wall | Even weld distribution, continuous production process, and lower manufacturing cost. | Low-pressure water pipelines, drainage systems, and structural pipes. |
IV. Specifications and Applications of Large-Diameter, Thick-Walled, and High-Pressure API 5L X52 Carbon Steel Welded Pipe
We offer a variety of API 5L X52 carbon steel welded pipe specifications to meet the needs of diverse projects, whether for long-distance transportation, municipal water supply, or high-pressure oil and gas pipelines. Common specifications include Schedule 40 and Schedule 80.

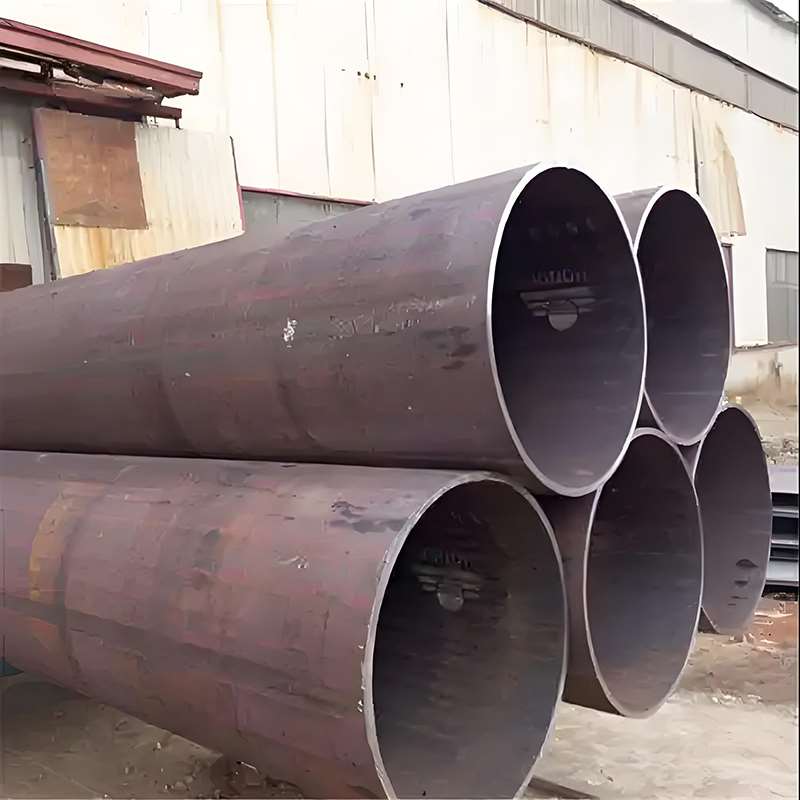

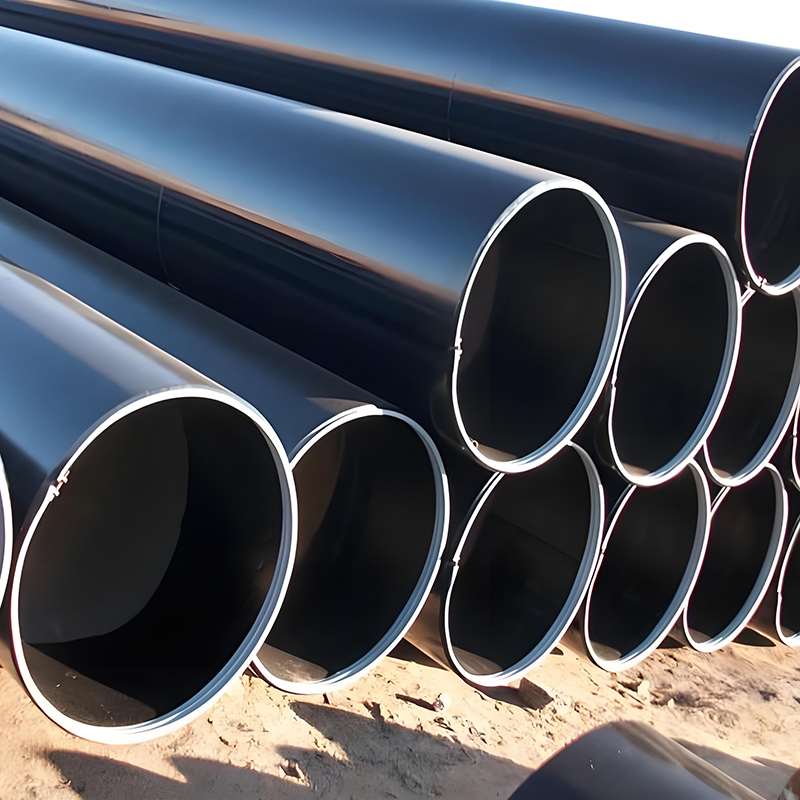

i. Large diameter API 5L X52 welded pipe
Suitable for long-distance oil and gas pipelines and industrial fluid pipelines, ensuring high flow and stable transportation.
Common pipe diameter range: 12″ (323.9mm) – 60″ (1524mm), can be customized according to project requirements.
Advantages: Reduce the number of pumping stations, improve transportation efficiency, and reduce overall project costs.
ii. Thick wall API 5L X52 welded pipe
Provide SCH 80 or higher wall thickness, with stronger pressure resistance and structural stability.
Common wall thickness: SCH 40 (medium pressure), SCH 80 (high pressure pipe section), please refer to the table below for details:
| Nominal Pipe Size (NPS) | Outer Diameter (mm) | SCH 40 Wall Thickness (mm) | SCH 80 Wall Thickness (mm) | Applicable Pressure |
|---|---|---|---|---|
| 2" | 60.3 | 3.91 | 6.02 | Medium / High Pressure |
| 4" | 114.3 | 6.02 | 9.27 | Medium / High Pressure |
| 6" | 168.3 | 7.11 | 11.13 | Medium / High Pressure |
| 8" | 219.1 | 8.18 | 12.70 | Medium / High Pressure |
| 10" | 273.0 | 9.27 | 14.27 | Medium / High Pressure |
| 12" | 323.9 | 9.53 | 15.09 | Medium / High Pressure |
V. How to Choose a Reliable API 5L X52 Carbon Steel Pipe Supplier
When purchasing API 5L X52 carbon steel pipes, it is crucial to choose a supplier with rich experience and reliable quality. The following points can help users quickly screen:
i. Qualifications and standards
Suppliers should strictly adhere to API 5L standards and provide a complete Material Testing Certificate (MTC).
For high-pressure projects, manufacturers that can provide PSL2 grade pipe are preferred.
ii. Product specifications and production capacity
We offer a variety of specifications, including large-diameter API 5L X52 welded pipe, thick-walled API 5L X52 welded pipe, and high-pressure API 5L X52 carbon steel pipe.
We support various welding processes, including ERW, LSAW, and SSAW, ensuring pipe strength and weld quality.
iii. Testing and Quality Control
We offer full-weld ultrasonic (UT) testing, radiographic (RT) testing, hydrostatic testing, and dimensional inspection to ensure reliable pipe performance.
Strict quality control is particularly important for large-diameter or high-pressure pipes.
iv. Lead Time and Logistics
Suppliers must have stable production capacity and inventory to ensure timely delivery of projects.
Provide secure packaging and transportation solutions to protect thick-walled, high-pressure, and large-diameter pipes from damage during transportation.
v. Technical Experience and After-Sales Service
We prioritize suppliers with extensive experience in pipeline engineering for oil and gas, chemical, and municipal water supply.
We provide selection guidance and technical support to help users choose SCH 40/SCH 80, thick-walled, or large-diameter API 5L X52 welded pipes, ensuring project safety and cost-effectiveness.
VI. API 5L X52 carbon steel welded pipe specifications and dimensions
API 5L X52 carbon steel welded pipe is available in a variety of wall thicknesses and diameters to meet varying pressure levels and fluid transport requirements. Commonly used wall thicknesses include Schedule 40 and Schedule 80.
i. API 5L X52 Schedule 40 Welded Pipe
Suitable for medium-pressure piping systems such as municipal water supply, natural gas distribution, and general industrial fluid transportation.
Its advantages include light weight, easy installation, and high cost-effectiveness.
ii. API 5L X52, 80mm wall thickness welded pipe
Offering higher pressure resistance, it’s suitable for high-pressure oil and gas transmission, as well as submarine pipeline projects.
It’s ideal for applications with high pressures or stringent pipeline safety requirements.
| Nominal Pipe Size (NPS) | Outer Diameter (mm) | Wall Thickness (mm) | Schedule | Applicable Pressure (MPa) | Weight (kg/m) | Typical Application |
|---|---|---|---|---|---|---|
| 1/2" | 21.3 | 2.77 | SCH 40 | ≤4.0 | 2.3 | Medium Pressure Water & Gas Pipe |
| 1/2" | 21.3 | 3.91 | SCH 80 | ≤6.0 | 3.2 | High Pressure Gas Pipe |
| 3/4" | 26.7 | 2.87 | SCH 40 | ≤4.0 | 2.8 | Medium Pressure Water & Natural Gas Pipe |
| 3/4" | 26.7 | 3.91 | SCH 80 | ≤6.0 | 3.7 | High Pressure Gas Transmission |
| 1" | 33.4 | 3.38 | SCH 40 | ≤4.0 | 4.1 | City Water Supply & Industrial Pipe |
| 1" | 33.4 | 4.55 | SCH 80 | ≤6.0 | 5.4 | High Pressure Oil & Gas Transport |
| 2" | 60.3 | 3.91 | SCH 40 | ≤4.0 | 7.5 | Medium Pressure Water & Gas Pipe |
| 2" | 60.3 | 6.02 | SCH 80 | ≤6.0 | 11.0 | High Pressure Oil & Gas Pipe |
| 4" | 114.3 | 6.02 | SCH 40 | ≤4.0 | 19.0 | City Water Supply & Natural Gas |
| 4" | 114.3 | 9.27 | SCH 80 | ≤6.0 | 28.0 | High Pressure Oil & Gas Pipeline |
| 6" | 168.3 | 7.11 | SCH 40 | ≤4.0 | 27.5 | Medium Pressure Fluid Transmission |
| 6" | 168.3 | 11.13 | SCH 80 | ≤6.0 | 43.0 | High Pressure Main Pipeline |
| 8" | 219.1 | 8.18 | SCH 40 | ≤4.0 | 38.0 | Medium Pressure Industrial Pipeline |
| 8" | 219.1 | 12.70 | SCH 80 | ≤6.0 | 60.0 | High Pressure Oil Pipeline |
| 10" | 273.0 | 9.27 | SCH 40 | ≤4.0 | 53.0 | Medium Pressure Water Transmission |
| 10" | 273.0 | 14.27 | SCH 80 | ≤6.0 | 85.0 | High Pressure Gas Transmission |
| 12" | 323.9 | 9.53 | SCH 40 | ≤4.0 | 64.0 | Medium Pressure Industrial Pipeline |
| 12" | 323.9 | 15.09 | SCH 80 | ≤6.0 | 102.0 | High Pressure Oil & Gas Pipe |
