I. API 5L X42 Seamless Steel Pipe Product Overview
API 5L X42 seamless steel pipe is a medium- and low-pressure transmission pipe manufactured to API 5L standards. It is widely used in petroleum, natural gas, chemical, and industrial fluid transmission systems.
Products cover outer diameters from 21.3 mm to 914 mm and wall thicknesses from 2.77 mm to 25.4 mm. Lengths can be customized as required (commonly 6 m or 12 m). Ends can be finished as plain ends (PE) or beveled ends (BE). Anti-rust oil, spray paint, or anti-corrosion coating treatments are provided for convenient transportation and long-term storage.
II. API 5L X42 Seamless Steel Pipe Specifications
| Parameter Name | Description |
|---|---|
| Standard | API 5L (American Petroleum Institute) |
| Pipe Grade | X42 |
| Manufacturing Process | Seamless / Hot Rolled |
| End Type | Plain End (PE) / Beveled End (BE) |
| Surface Treatment | Black paint, anti-rust oil, customizable anti-corrosion coating (e.g., 3PE) |
| Inspection Method | Hydrostatic test, ultrasonic testing, magnetic particle testing (ensuring each pipe is qualified) |

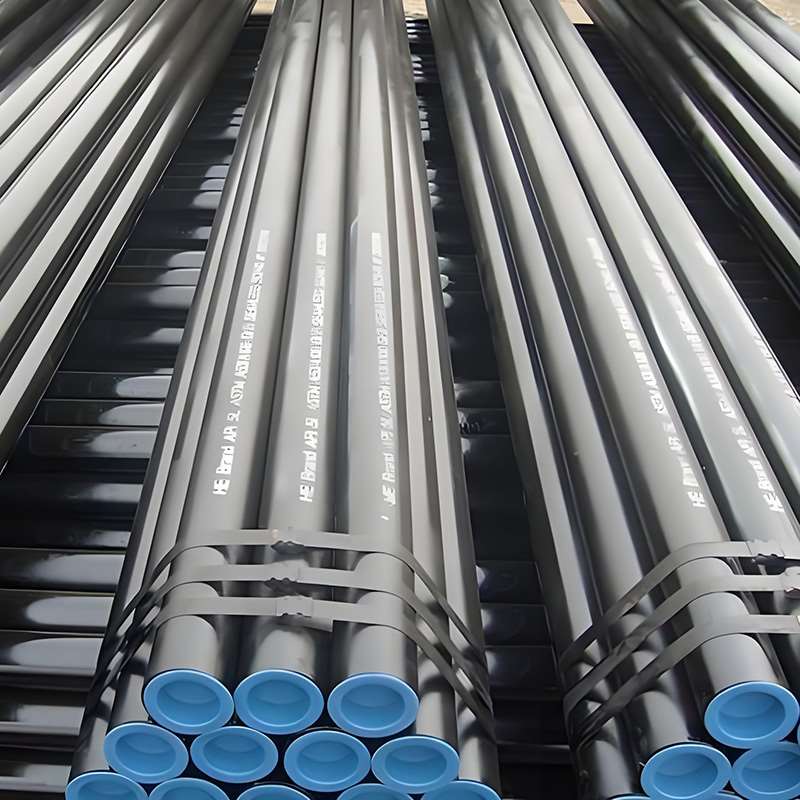

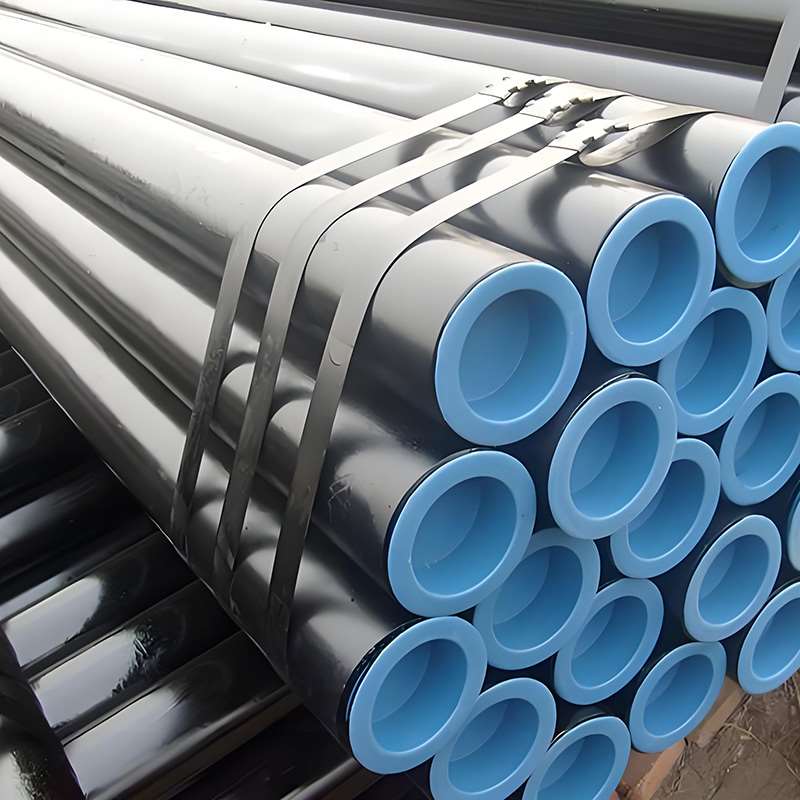

| Packing Method | Bundled with steel straps, plastic caps, wrapped with waterproof cloth |
| Optional Processing | Cut-to-length, end beveling, threading, anti-corrosion treatment |
| Supply Lead Time | Large-diameter and thick-wall pipes are customizable; stock or production lead time must be confirmed in advance |
| Typical Applications | Oil pipelines, gas pipelines, industrial fluid pipelines, structural supports |
| Transportation Requirements | Consider anti-corrosion, impact protection, moisture-proof; suitable for sea or land transport |
| Certification | API 5L test report, ISO 9001, third-party inspection reports available |
III. API 5L X42 Seamless Steel Pipe Applications
(1) Oil Pipelines
Transportation of crude oil or refined petroleum products
Medium-to-low pressure pipelines suitable for long-distance transmission
Procurement Focus: Pipe grade, hot-rolled seamless construction, anti-corrosion treatment, and supply cycle.
(2) Gas Pipelines
Transportation of natural gas and industrial gases
High safety requirements necessitate seamless steel pipes with uniform pressure distribution
Procurement Focus: End processing type, inspection reports, surface anti-corrosion
(3) Industrial Fluid Conveyance
Chemical liquids, thermal oil, water, and steam systems
Resistant to general chemical corrosion
Procurement Focus: Anti-corrosion coating type, custom lengths, inspection certification
(4) Structural Support & Mechanical Applications
Framework support, pipe hangers, and mechanical structures
Seamless pipes may be selected for enhanced load-bearing capacity
Procurement Focus: Dimensional specifications, end processing, surface rust prevention treatment.
IV. API 5L Seamless Steel Pipe Grade Comparison Table
| Pipe Grade | Minimum Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Applicable Pressure Range | Typical Applications |
|---|---|---|---|---|---|
| X42 | 290 | 415–555 | ≥ 20 | Medium and low-pressure pipelines | Oil, gas, industrial fluid pipelines |
| X46 | 317 | 415–560 | ≥ 20 | Medium and low-pressure pipelines | Oil and gas pipelines, slightly higher pressure requirement |
| X52 | 359 | 455–610 | ≥ 20 | Medium and high-pressure pipelines | Oil and natural gas pipelines, high-pressure systems |
| X56 | 379 | 485–630 | ≥ 20 | Medium and high-pressure pipelines | Gas pipelines, industrial high-pressure fluids |
| X60 | 414 | 500–690 | ≥ 18 | High-pressure pipelines | Long-distance oil and gas pipelines, petrochemical pipelines |
| X65 | 448 | 535–720 | ≥ 18 | High-pressure pipelines | High-pressure natural gas pipelines, oil transportation pipelines |
V. API 5L X42 Seamless Steel Pipe Procurement Considerations
(1) Confirm Standards and Grades
API 5L standards must be followed, with pipe grade specified as X42.
Verify compliance with project design requirements to prevent incorrect grade or specification selection.
(2) End Form and Processing Requirements
Select plain ends (PE) or beveled ends (BE) based on construction needs.
If welding or connection is required, confirm end processing is completed in advance.
(3) Anti-Corrosion Treatment
Select surface treatment based on conveyed medium and environment: black paint, rust-preventive oil, or 3PE/epoxy coating.
Anti-corrosion treatment directly impacts pipe transportation, storage, and long-term service life.
(4) Supply Lead Time and Inventory
Large-diameter, thick-walled pipes, or custom-length pipes may require special ordering; confirm production lead time in advance.
Verify manufacturer’s availability of stock inventory to meet construction schedule requirements.
(5) Inspection and Testing Reports
Require submission of inspection reports including hydrostatic pressure testing, ultrasonic flaw detection, and magnetic particle inspection during procurement.
For critical items, third-party inspection or quality certificates may be requested.
(6) Transportation and Packaging
Ensure secure pipe packaging to prevent moisture ingress and impact damage during transit.
Packaging options include bundling, plastic cap sealing, and waterproof cloth wrapping.
(7) Customization Services
Based on project requirements, services include cut-to-length processing, end beveling, threading, and anti-corrosion treatment.
Confirm processing capabilities and delivery times in advance.
(8) Project Suitability
Determine pipe suitability based on medium type, pressure rating, and operating temperature.
For highly corrosive or high-temperature environments, consider upgrading material grades or adding anti-corrosion treatment.
